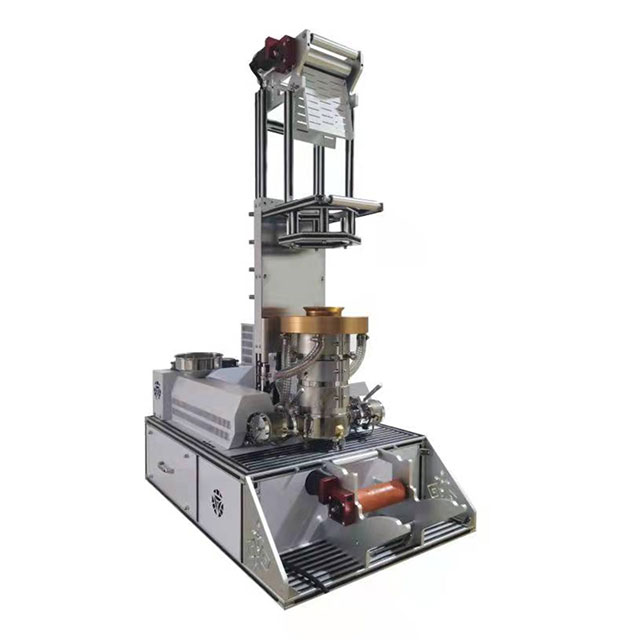

TS-P45/50/55/65Plastic Blown Film Gravure Printing Unit
TS-P45/50/55/65
1. automatic suction machine
2. Surface Treatment
3. Rotary die Head
4. The air compressor
5. Quick screen changer
6. Double winding
2. Surface Treatment
3. Rotary die Head
4. The air compressor
5. Quick screen changer
6. Double winding
The fuselage of the unit is a square steel frame, and the traction motor is with frequency conversion. Friction single winding, Lift etc. Suitable for blowing high and low pressure polyethylene industrial films and agricultural mulching films. even Continuous printing of various plastic films. Cloth and thin leather, packaging products. single-sidedPrinting is done in one go. 360-degree plate registration device, accurate and does not affect the pulling of the filmlong. The printing color can be adjusted arbitrarily at any time. No infrared tube drying device,It can dry 50%/min, and the image is clear and beautiful. (The gravure printing machine can also be replaced with flexosex press)
| Model | TS-P45 | TS-P50 | TS-P55 | TS-P65 |
| Screw diameter | ￠45mm | ￠50mm | ￠55mm | ￠65mm |
| Diameter of film | 100-500mm | 300-600mm | 400-800mm | 600-1200mm |
| Film thickness sided | 0.009-0.05mm | 0.009-0.05mm | 0.009-0.15mm | 0.009-0.15mm |
| The maximum amount out | 35Kg/h | 40Kg/h | 50Kg/h | 55Kg/h |
| Aspect ratio | 28:1/30:1 | 28:1/30:1 | 28：1/30:1 | 28：1/30:1 |
| Host power | 11Kw | 15Kw | 18.5Kw | 22Kw |
| Barrel temperature control | 3 | 3 | 3 | 4 |
| Average power consumption | 10Kw | 12Kw | 18Kw | 30Kw |
| Dimensions | 5000x2000x4100mm | 5000x2100x4500mm | 5500x2300x5200mm | 5800x2600x6300mm |
| power supply | 3.8V,50Hz,3Phase | 3.8V,50Hz,3Phase | 3.8V,50Hz,3Phase | 3.8V,50Hz,3Phase |
